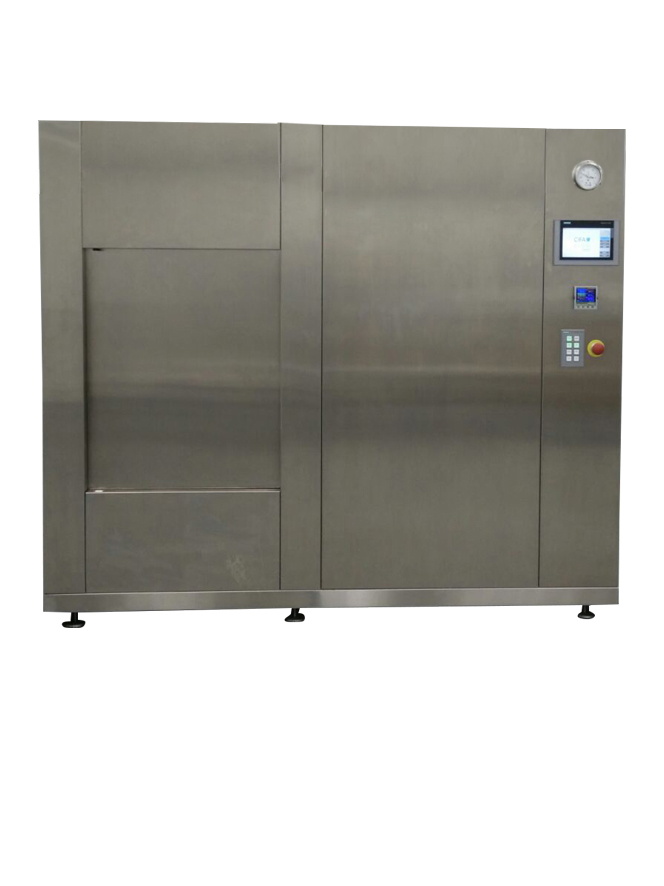

The body of the autoclave is formed by a chamber and a jacket. The chamber is totally build with 6 mm thick stainless steel AISI 316 Ti.
Its section is rectangular and has the four longitudinal axes rounded with a 50mm radio to facilitate its cleaning.
The jacket has some expanded buttons whose function are to facilitate the separation needed to create a space where the raw steam can flow and give the resistance needed to support the pressure and strengthen the chamber.
The jacket is built with 4 mm thick stainless Steel AISI 316 L de 4 mm and wraps all the chamber. The internal side of the chamber is mechanical polished (Ra < 0,64 µ).
The jacket s totally covered by a 70 mm thick rock wool isolator and shelled with stainless steel AISI-304, satin polished.
In the chamber, there is a validation port to introduce the validation temperature sensors and it can be used as pressure test port, too.
In the basis of the chamber there are two rails on where the loading trolleys can slide.
Non-proprietary elements (Gemü, Siemens, Festo, SMC)
