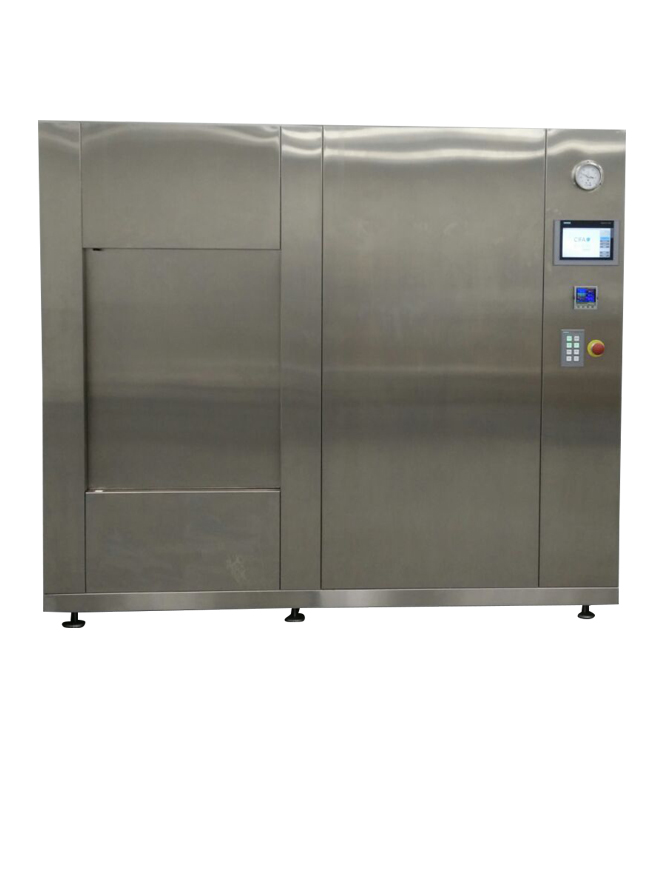

The body of the autoclave is formed by a 6mm thick stainless Steel AISI316Ti chamber.
It has a circular section to stand the pressure and facilitate its cleaning.
The chamber provides a recirculation water system to reach all the load in the chamber and a heat exchanger to overheat and chill the water and in this way, achieve a uniformity of temperature in the chamber.
Inside the chamber there are located 1 or 2 mobile temperature sensors, depending on the size of the chamber, to us them in the load and monitor the temperature of the load.
The internal side of the chamber is mechanical polished Ra < 0,64 µ.
The chamber s totally covered by a 70 mm thick rock wool isolator and shelled with stainless steel AISI-304, satin polished.
In the chamber there is a validation port to introduce the validation temperature sensors and it can be used as pressure test port, too.
In the basis of the chamber there are two rails on where the loading trolleys can slide.
Non-proprietary elements (Gemü, Siemens, Festo, SMC)
